Model-driven architectures

Model Driven Architecture (MDA) is an answer to growing complexity of systems controlled by configuration management tools. It provides unified node classification with atomic service definitions.

Core principles for deploying model-driven architectures.

• Atomicity - Services are serated at such level of granularity that.
• Reusability/replacibility - Different services serving same role can be replaced without affecting neigbouring services.
• System roles - Services may implement various roles, most often client/server variations.
• Dynamic resources - Service metadata must be alwyas available for dynamically created resources.
• Change management - The strength lies not in descibing the static state of service but more the process of everchanging improvements.

Sample MDA Scenario

Following image show example system that has reasonable amount of services with some outsourced by 3rd party providers. The OpenStack architecture is too big to fit here.

We can identify several layers within the largers application systems.

• Proxy layer - Distributing load to application layer
• Application layer - Application with caches
• Persistence layer - Databases

Application systems are supported by shared subsystems that span across multiple application systems. These usually are:

• Access & control system - SSH access, orchestration engine access, user authentication
• Monitoring system - Events and metric collections
• Essential systems - DNS, NTP, MTA clients

Service Decomposition

The following chapter shows service decomposition of GitLab all-in-one box.

Server level

Servers contain one or more systems that bring business value and several maintenance systems that are common to any node. Following list shows basic systems at almost any node.

• Application systems - Business Logic implementations
• Access & control system - SSH access, orchestration engine access, user authentication
• Monitoring system - Events and metric collections
• Essential systems - DNS, NTP, MTA clients

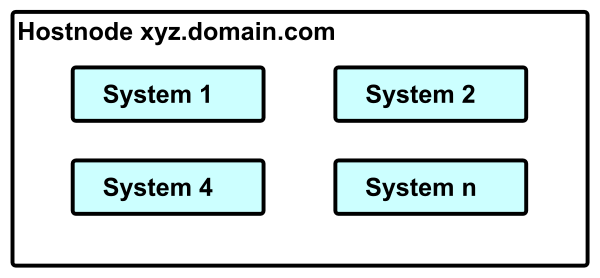

Systems can be seen at following picture.

Multiple servers with various systems can are defined by the reclass definition to aleviate node definitions.

reclass:
  storage:
    node:
      tpc_int_prd_vcs01:
        name: vcs01
        domain: int.prd.tcp.cloudlab.cz
        classes:
        - system.linux.system.kvm
        - system.openssh.server.team.tcpcloud
        - system.gitlab.server.single
        params:
          salt_master_host: ${_param:reclass_config_master}
          gitlab_server_version: '7.7'
          gitlab_server_name: git.tcpcloud.eu
          gitlab_server_email: gitlab@robotice.cz
          gitlab_client_host: git.tcpcloud.eu
          gitlab_client_token: <redacted>
          nginx_site_gitlab_ssl_authority: <redacted>
          nginx_site_gitlab_server_host: git.tcpcloud.eu
          mysql_admin_password: <redacted>
          mysql_gitlab_password: <redacted>
      tpc_int_prd_svc01:
        ..
      tpc_int_prd_svc0N:
        ..

The actual generated definition is in the following code. All of the logic is encapuslated by system that are customised by set of parameteres, some of which may be GPG encrypted. This is better form to use in development as reclass powered metadata requires explicit state declaration that may not be automatic and just bothers at development stage.

classes:
- system.linux.system.kvm
- system.openssh.server.team.tcpcloud
- system.gitlab.server.single
parameters:
  _param:
    salt_master_host: master1.robotice.cz
    mysql_admin_password: <redacted>
    gitlab_client_token: <redacted>
    gitlab_server_name: git.tcpcloud.eu
    gitlab_client_host: git.tcpcloud.eu
    mysql_gitlab_password: <redacted>
    nginx_site_gitlab_server_host: git.tcpcloud.eu
    gitlab_server_email: gitlab@robotice.cz
    gitlab_server_version: '7.7'
    nginx_site_gitlab_ssl_authority: <redacted>
  linux:
    system:
      name: vcs01
      domain: int.prd.tcp.cloudlab.cz

System level

There are usually multiple systems on each server that may span one or more servers. There are defintions of all-in-one solutions for common systems for development purposes.

The systems are classified by simple following rule.

• Single - Usually all-in-one application system on a node (Taiga, Gitlab)
• Multi - Multiple all-in-one application systems on a node (Horizon, Wordpress)
• Cluster - Node is par of larger cluster of nodes (OpenStack controllers, larger webapp applications)

Redis itself does not form any system but is part of many well know applications, the following example shows usage of Redis within complex Gitlab system.

classes:
- service.git.client
- service.gitlab.server.single
- service.nginx.server.single
- service.mysql.server.local
- service.redis.server.local
parameters:
  _param:
    nginx_site_gitlab_host: ${linux:network:fqdn}
    mysql_admin_user: root
    mysql_admin_password: password
    mysql_gitlab_password: password
  mysql:
    server:
      database:
        gitlab:
          encoding: UTF8
          locale: cs_CZ
          users:
          - name: gitlab
            password: ${_param:mysql_gitlab_password}
            host: 127.0.0.1
            rights: all privileges
  nginx:
    server:
      site:
        gitlab_server:
          enabled: true
          type: gitlab
          name: server
          ssl:
            enabled: true
            authority: ${_param:nginx_site_gitlab_ssl_authority}
            certificate: ${_param:nginx_site_gitlab_host}
            mode: secure
          host:
            name: ${_param:nginx_site_gitlab_server_host}
            port: 443

Service level

The services are the atomic units of config management. SaltStack formula or Puppet recipe with default metadata set can be considered as a service. Each service implements one or more roles and together with other services form systems. Following list shows decomposition

• Formula - Set of states that perform together atomic service
• State - Declarative definition of various resources (package, files, services)
• Module - Imperative interaction enforcing defined state for each State

Given Redis formula from Gitlab example we set basic set of parametes that can be used for actual service configuration as well as support services configuration.

Following code shows sample Redis formula showing several states: pkg, systl, file and service.

{%- from "redis/map.jinja" import server with context %}
{%- if server.enabled %}

redis_packages:
  pkg.installed:
  - names: {{ server.pkgs }}

vm.overcommit_memory:
  sysctl.present:
    - value: 1

{{ server.conf_dir }}:
  file.managed:
  - source: {{ conf_file_source }}
  - template: jinja
  - user: root
  - group: root
  - mode: 644
  - require:
    - pkg: redis_packages

redis_service:
  service.running:
  - enable: true
  - name: {{ server.service }}
  - watch:
    - file: {{ server.conf_dir }}

{%- endif %}

Along with the actual definition of node there are service level metadata fragments for common situations. Following fragment shows localhost only Redis database.

applications:
- redis
parameters:
  redis:
    server:
      enabled: true
      bind:
        address: 127.0.0.1
        port: 6379
        protocol: tcp

Service Decomposition

reclass has some features that make it unique:

• Including and deep merging of data structures through usage of classes
• Parameter interpolation for cross-referencing parameter values

The system aggregation level:

classes:
- system.linux.system.kvm
- system.openssh.server.team.tcpcloud
- system.gitlab.server.single
parameters:
  _param:
    salt_master_host: master1.robotice.cz
    mysql_admin_password: <redacted>
    gitlab_client_token: <redacted>
    gitlab_server_name: git.tcpcloud.eu
    gitlab_client_host: git.tcpcloud.eu
    mysql_gitlab_password: <redacted>
    nginx_site_gitlab_server_host: git.tcpcloud.eu
    gitlab_server_email: gitlab@robotice.cz
    gitlab_server_version: '7.7'
    nginx_site_gitlab_ssl_authority: <redacted>

The single system level:

classes:
- service.git.client
- service.gitlab.server.single
- service.nginx.server.single
- service.mysql.server.local
- service.redis.server.local
parameters:
  _param:
    nginx_site_gitlab_host: ${linux:network:fqdn}
    mysql_admin_user: root
    mysql_admin_password: password
    mysql_gitlab_password: password

The single service level:

applications:
- redis
parameters:
  redis:
    server:
      enabled: true
      bind:
        address: 127.0.0.1
        port: 6379
        protocol: tcp

---
